Dell Dell Latitude 5410 FDZ41 LA-J371P REV: 1.0

badcapjer · Lúc 02:05, Thứ hai

chip nói:
please share

HQP9FB3

badcapjer · Lúc 03:57, Thứ hai

badcapjer nói:
HQP9FB3

Wait i'm finding a problem with one of the pins. might be problem with donor chip

badcapjer · Lúc 04:20, Thứ hai

chip nói:
please share

Why don't i get continuity on pin 1 of the wson 8mb chip? to the soic chip all other pins have continuity and on jspi test point, but not pin 1 even with the chip off

badcapjer · Lúc 04:24, Thứ hai

badcapjer nói:
Why don't i get continuity on pin 1 of the wson 8mb chip? to the soic chip all other pins have continuity and on jspi test point, but not pin 1 even with the chip off

no i see it's correct same on donor board, so i'm lost

Admin · Lúc 09:33, Thứ hai

badcapjer nói:
I don't know. nothing's working. solder joints look ok. any other ideas?

Admin · Lúc 09:35, Thứ hai

badcapjer nói:
Why don't i get continuity on pin 1 of the wson 8mb chip? to the soic chip all other pins have continuity and on jspi test point, but not pin 1 even with the chip off

Maybe the resistor at pin 1 has a problem.

Admin · Lúc 09:54, Thứ hai

badcapjer nói:
no i see it's correct same on donor board, so i'm lost

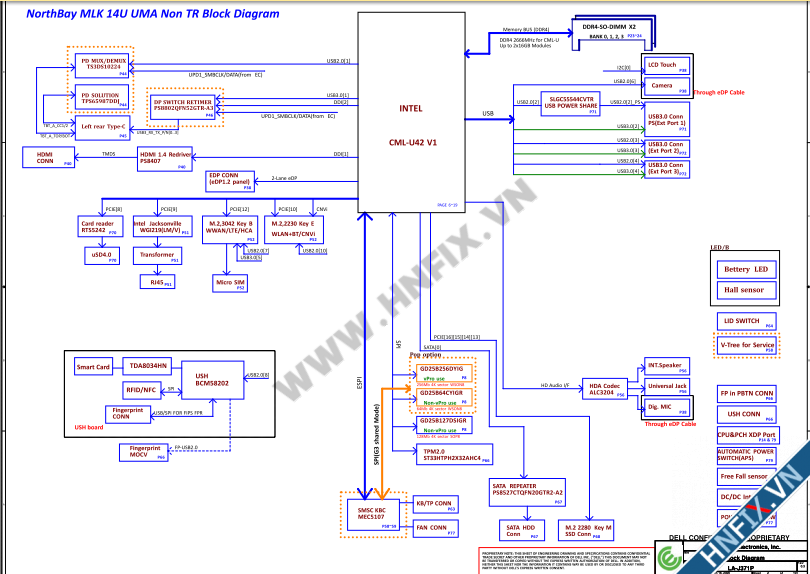

Schematic

badcapjer · Lúc 16:13, Thứ hai

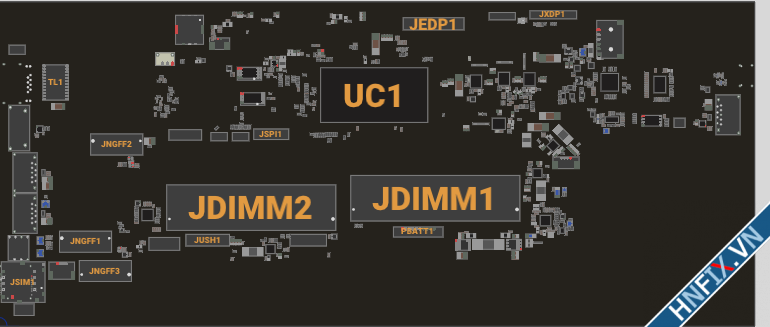

Thank you i couldn't find that. do you have boardview?

badcapjer · Lúc 05:02 Hôm qua

So far i'm testing on the donor board which has same no continuity on pin1 of the wson pad and i've only found connection to a resistor directly on the other side of the board which reads 4.7k

badcapjer · Lúc 05:05 Hôm qua

Ok i mad a dumb assumption that cs pins all connected on spi. i see in the schematics that cs#0 of the wson has different jspi test points pins 8,9 which are fine. so i'm still stuck

Admin · Lúc 10:12 Hôm qua

Latitude_5X10_Precision_3550_1.22.0_NorthbayMLK_EC2_Model-09A0-09A1-09A2.rar

I have built this file according to your original bios. If it doesn't load, you should check other problems. Maybe the problem is not in the bios.

badcapjer · Lúc 14:27 Hôm qua

Admin nói:
I have built this file according to your original bios. If it doesn't load, you should check other problems. Maybe the problem is not in the bios.

Thank you. appreciate it. it's behaving the same with these files. constant fan. occasional cycling
